SQP and DEM set up difference

MFiX
1

Hello,

I am trying to solve a problem using both DEM and SQP. I am seeing that when I am using SQP some parameters are deactivated. In SQP, only Hertzian collision model is available. Also, I cannot choose the Spring Constant in SQP. I am attaching the screenshots of the two set up. Kindly have a look and let me know why I cannot activate some model settings in SQP that I used in DEM simulations.

I look forward to hearing from you.

Thanks and Regards,

Debashis

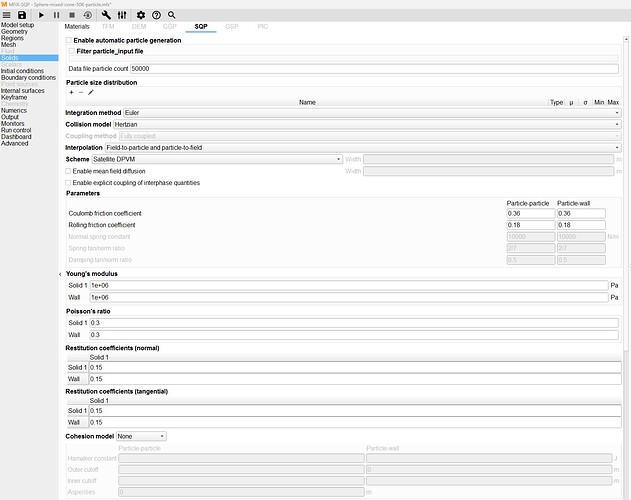

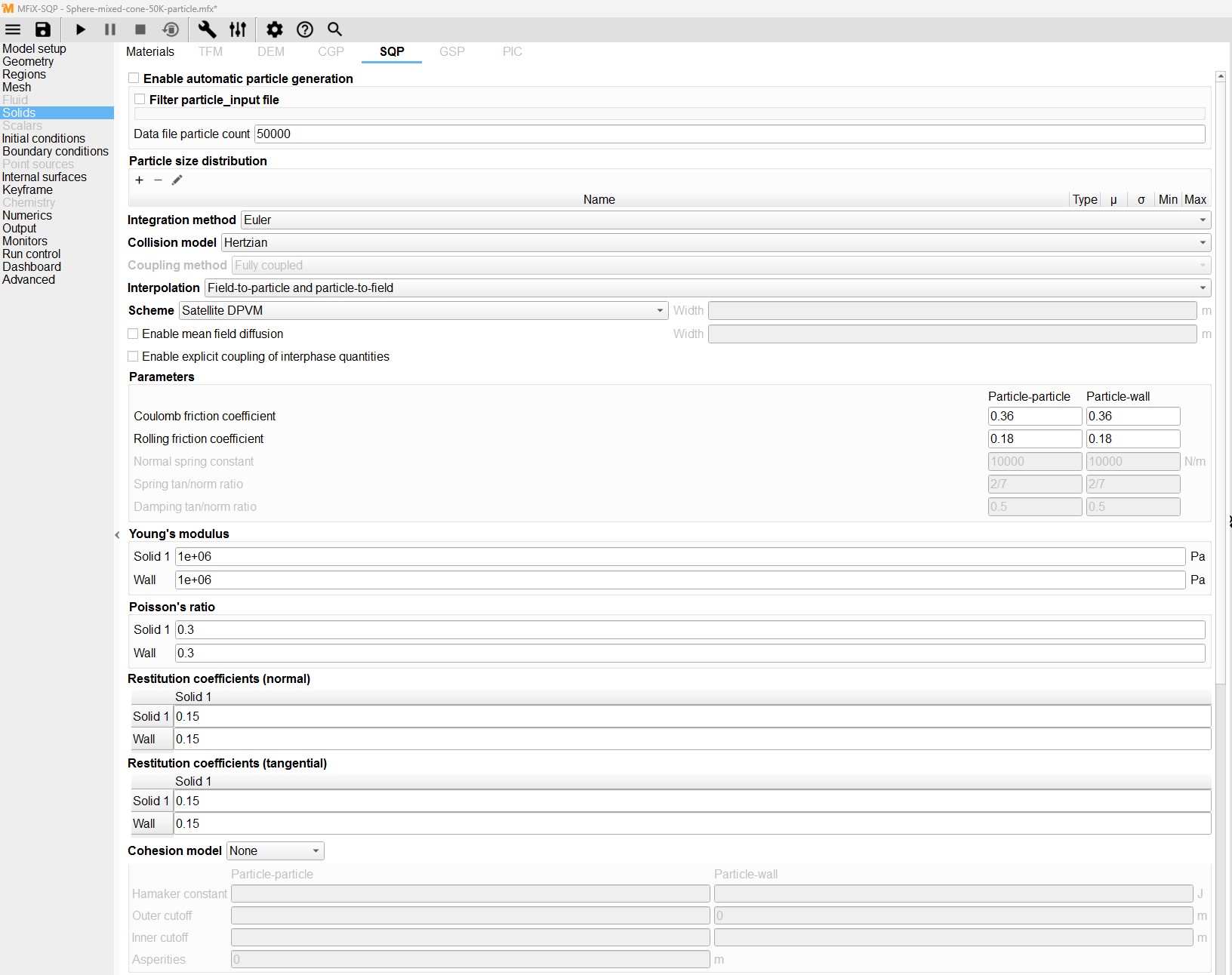

SQP-Set-up
SQP-Set-up1632×1292 231 KB

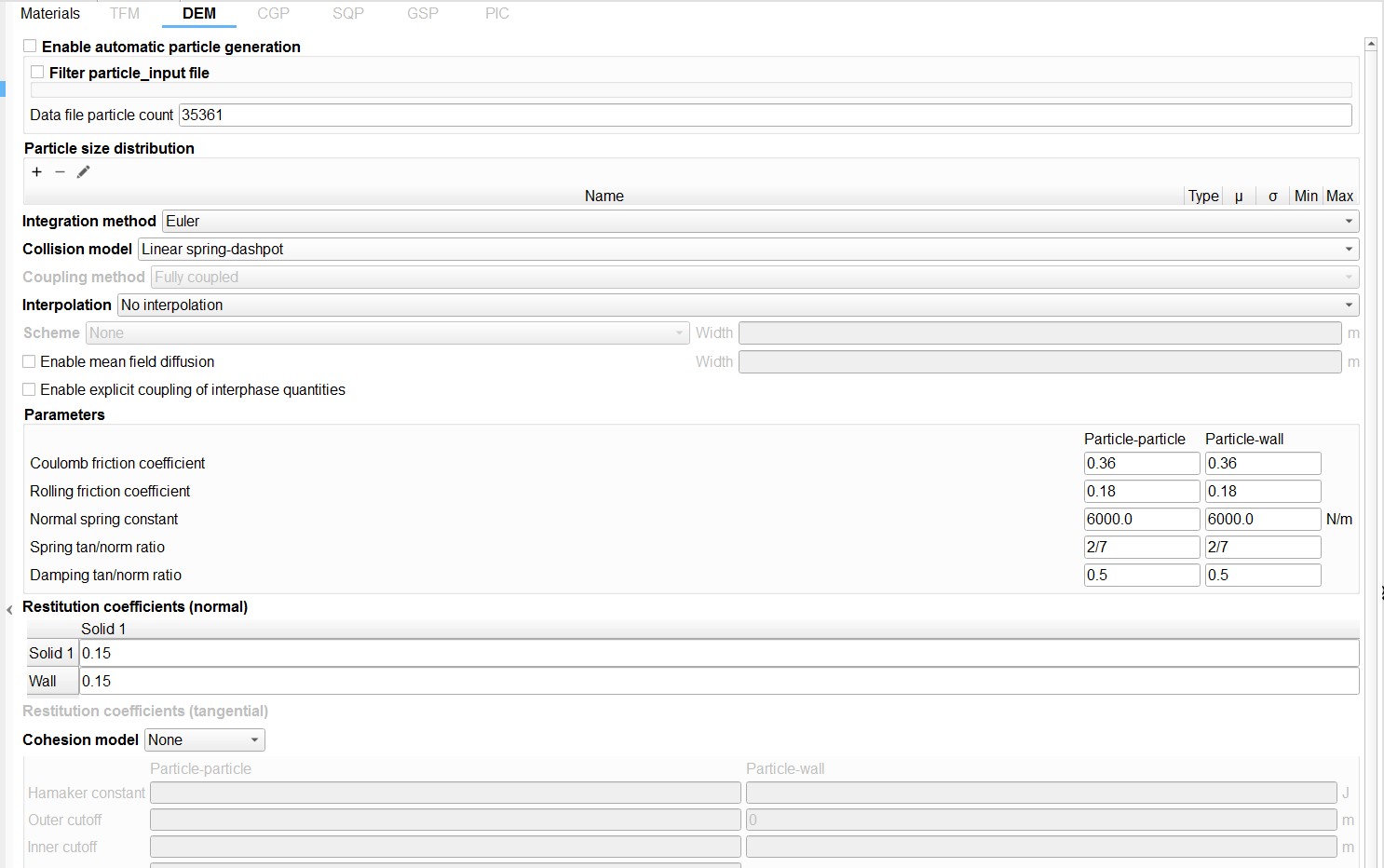

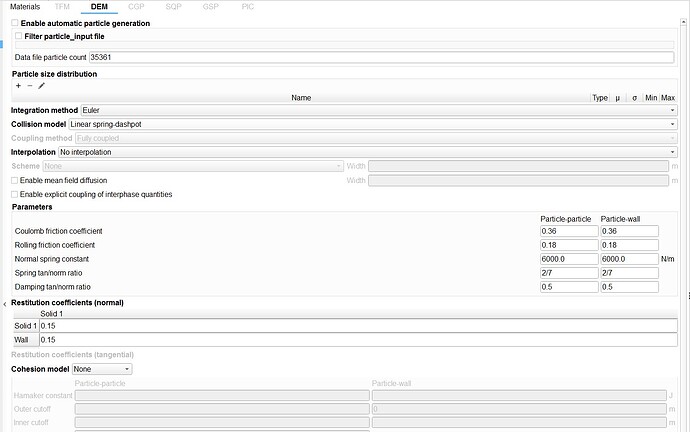

DEM-Set-up
DEM-Set-up1486×932 158 KB

2

Those options are disabled deliberately because they are not implemented or appropriate for the SQP model.

3

Thank you for the clarification Dr. Waldman.

Best Regards,

Debashis
