Error in the mesh of the STL geometry

MFiX
#1

Please select the most relevant MFiX category: | Installation | How to | Bug report | Share | for this topic.
There are errors in the mesh at the inlet and outlet of the imported STL geometry.How to adjust it to be the same as the mesh of the primitive that comes with MFiX.
The first screenshot is the mesh of the primitive that comes with MFiX.The second screenshot is the
mesh of the STL geometry.

da539cf13411d2be1355ea6231d4241
da539cf13411d2be1355ea6231d42411384×888 228 KB

2
21331×806 200 KB

#2

Please try with an stl file that is a bit longer than the MFiX box.

#3

The stl file was modified to be longer than the MFiX box.But there is still the error.

ec22ed2d18551a3c503dcf0156b6703

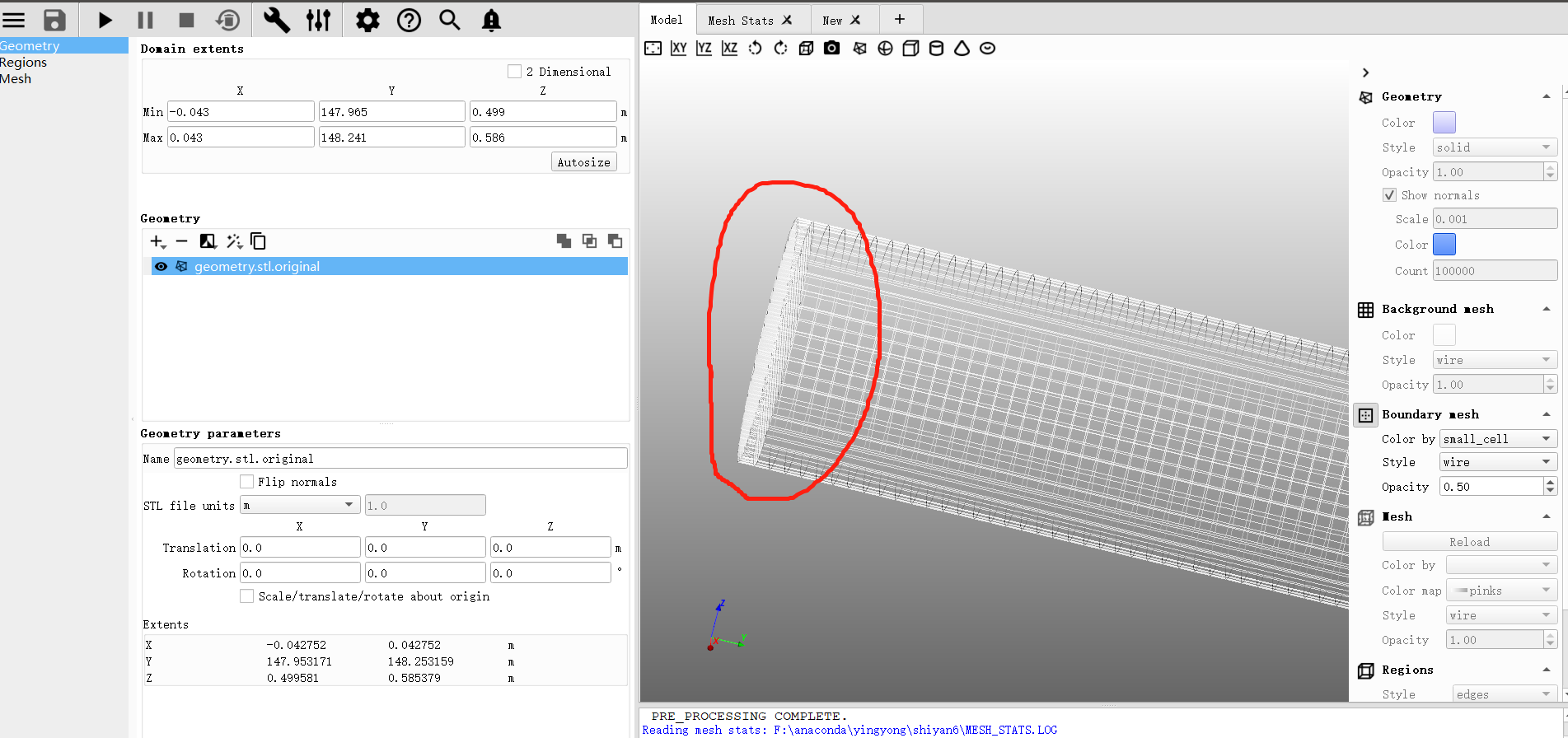

ec22ed2d18551a3c503dcf0156b67031920×938 262 KB

d8e51c5a82299e2ed0312389db8e804
d8e51c5a82299e2ed0312389db8e8041903×896 129 KB

#4

What error are you getting? Please attach your setup files if you want better support.
Note: the stl file geometry.stl.original indicates you are not loading the correct stl file. This looks like an stl file from a previous run.

#5

shiyan6.zip (743.5 KB)
I think that there is error at the inlet and outlet of the STL file.How to solve this problem? Thanks!

#6

I am still seeing geometry.stl.original and your .STL file has chinese characters in the file name. If you want to use the .STL file, please rename it with English characters.

It looks like there is an issue with the large values of the y-coordinates (147 to 148 meters). Please try to re-center the geometry so the y-coordinates is close to zero (range roughly between zero and one).

#7

This problem is solved.
Thank you very much for your help.
